This component directionally masks using the Mix’s normals.

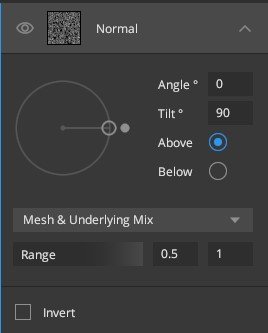

A demonstration of the normal component.
  • Angle: The angle of normals to include in the mask, where 0 is to the right when looking top down.

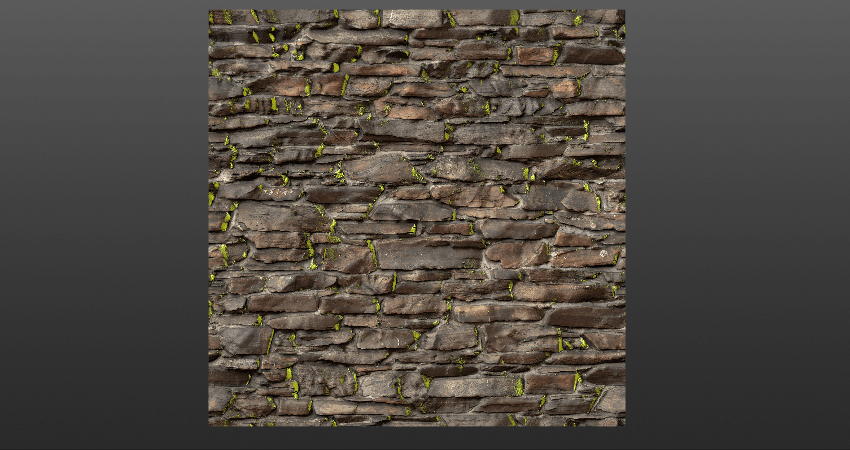

Rotating the normal mask on the green layer in a counter-clockwise direction.
  • Tilt: The tilt in the vertical direction of normals to include.
  • Range: Specify the range of normals to apply to the mask.
  • Normal Data: You can also choose between different options for your Normal data:
    • Mesh & Underlying Mix
    • Mesh & Current Layer
    • Mesh & Base Normal Map
    • Mesh Only

The following video will give you some great examples for this component.
